Specially designed for vehicles with pneumatic differentials or ARB Air Lockers. The compact and lightweight design with so-called push-in connections facilitates installation. At the four bleed holes can also be connected, for example, gearbox & transfer case. The mounting is done with M6 bolts / screws. The ARB axle breather kit should be mounted in the engine compartment at the highest point. Axle Breather for Land Rover Defender (not vehicle specific) The splash proof air filter is with a washable sintered bronze filter. The high performance oil, water and heat resistant 8 mm polyurethane hoses reduce the likelihood of oil blockages in the axlesScope of delivery 1 x Anodized aluminum manifold 1 x Air filter 1 x 8mm x 8m polyurethane hose 4 x 8mm-1/8 "BSP connectors 3 x 1/8 "BSP connectors 2 x sheet metal screws 10 x cable ties

The Defender Limited Slip Differential - ATB Automatic Torque Biasing - Limited slip differential. The Land Rover Defender Limited Slip Differential ATB is a so-called "Helical Gear" differential - with six gear pockets. It increases the off-road capability of the Defender many times over. There are a number of other Limited Slip differentials available for the Land Rover Defender, Discovery 1 or Range Rover Classic. Such as the Limited Slip with a friction disc clutch and the TYPE T1 Torsen.The Torsen T1 was the predecessor of today's ATB differentials. Friction disc LSD differential - obsolete technically with high wear and tear An ATB differential is technically and from the durability clearly superior to the friction disc variant. Especially at very high loads under adverse conditions and the associated wear, which acts perpetually on the organic friction discs. With the friction disc differential, high friction is required to reduce slip on the drive wheels. This high preload results in harsh vibration effects and causes high premature wear. The Torsen T1 differential was based on a mechanical principle. To produce transverse torque, effectively coupled worm and gear wheels are driven backwards to produce the required frictional loads. These often failed under this high load, and the worm gears were destroyed after not too long of use. The ATB differential (Automatic Torque Baisin) is the helical type and has many advantages. ATB differentials are practically imperceptible to the driver during normal road driving, since the friction between the gear and guide does not intervene. Disadvantage and explanation of handling in off-road use One disadvantage of the ATB Limited Slip Differential is that one wheel per axle must always be loaded to be effective. If there is no load situation, for example a drive axle, the wheel with traction would be loaded about three times as much as the wheel without traction. This means that there is no 100% propulsion here. To overcome this problem, the Defender Limited Slip Differential, is equipped with some preload springs, and the trick is to lightly apply the brake with your left foot while giving it some throttle. This maneuver fools the differential by distributing a load to the slip side. On the Land Rover Defender ATB differential, the load distribution is about 3: 1, which is multiplied to the other side. The loss of drive, therefore, attributed to the trick with the brake, thus distributes the power evenly to both wheels. In a vehicle with automatic traction control, this braking is automatically simulated by the ABS Modulator. The ATB differential provides additional traction by multiplication on Defender models with Traction Control (TC). Mounting and accessories for Land Rover Defender and Discovery 1 models The Land Rover ATB differential can be mounted at the front or rear. On the front axle, the Defender's tracking through the steering will be slightly higher compared to the standard differential. You will notice this stiffer steering very little when cornering. So why use an ATB instead of a 100% differential lock? When riding on a low traction surface, such as, sand, snow or wet grass, you could cause some loss of traction when cornering with a 100% differential lock. This is because both wheels are driven at the same speed. The ATB lock allows the difference in wheel speed to be equalized even on loose surfaces, but at the same time tries to equalize the torque at each wheel. This reduces the possibility of a so-called spin-out situation. When mounting for Defender 110 and 130 rear axle, an adapter kit is still needed. For Defender 90, Discovery 1 and Range Rover Classic the differentials for front & rear axle are the same. Safety Note: Due to the nature of the ATB differential, we do not recommend vehicle with lock on a roller brake tester. Mounting Note: When mounting for Defender 110 and 130 rear axle, an adapter kit is still needed. For Defender 90, Discovery 1 and Range Rover Classic the differentials for front & rear axle are the same.

Release bearing reinforced for Land Rover Defender and Discovery Defender & Discovery release bearing for switch gear R380 & LT77 Quality: reinforced Installed quantity: 1 piece

Double-joint cardan shaft reinforced for the Land Rover Defender 110 TD5 suitable for the rear axle. The ENGAGE4X4 propshafts are designed for very heavy loads in off-road operation. ENGAGE4X4 double-jointed cardan shaft The sliding piece of this Defender propshaft is protected from the ingress of dirty water by a Simmering. The universal joints are of a reinforced 30 mm design and can be lubricated. The shaft operates stress-free at an angle of up to 35°. Thus, the ENGAGE4X4 double-joint cardan shaft is absolutely necessary for Land Rover Defender with a suspension lift, so as to counteract the vibrations in the drivetrain. Another special feature is the new greasable sliding piece developed by ENGAGE4X4, here the grease nipple is protected, so that the shaft can be maintained even after extreme off-road use. Areas of application:Off Road, Trophy, Rally Raid, protected vehicles, higher vehicles. Material:Cross sets: Reinforced 30mm (greasable)Length compensation: 110mmSliding piece: Toothing plastic coated and sealed with Simmering (greasable)Flange: Fits flange STC4370 (original Defender flange) Manufacturer Standard: ISO:9001 & TS:16949

ENGAGE4X4 Wide Angle Shaft Defender 110 Rear Axle Cardan shafts from ENGAGE4X4 are made in Germany and are only manufactured with OE parts to ensure long durability. All cardan shafts have been tested, developed and continuously improved by us over many years. The universal joints are much stronger than the original standard joints. ENGAGE4 Wide Angle Cardan Shaft Defender 110 for high durability in off-road conditions The ENGAGE4X4 cardan shafts are designed for very heavy loads in off-road operation. The sliding piece of this Defender propshaft is protected against the ingress of dirty water by a Simmering. The reinforced universal joints are equipped with special PU thrust washers (high performance seal) according to construction machinery standard. The universal joints can be lubricated centrally. The shaft works stress-free at an angle of up to 30° in case of large entanglement. ENGAGE4X4 wide-angle cardan shafts are of great advantage for Defenders with a chassis lift of more than 50 mm and a higher axle articulation. In this way, the universal joints are not overstressed in the extended state. The sliding piece with over 100 mm length compensation can be lubricated on all shafts since 2014. The grease nipple is protected from tearing off by a metal ring. So that the shaft can still be maintained even after extreme off-road use. Information Areas of application, off road, trophy, rally raid, protected vehicles, higher vehicles Cross sets reinforced 30mm with PU thrust washers (greasable) Length compensation 110mm Sliding piece toothing plastic coated and sealed with Simmering (greasable) Fits original Defender flange Manufacturer Standard: ISO:9001 & TS:16949 Suitable for: 110 TD5 110 TD4 2,4 L & 2,2L 110 TDI

Defender 100% pneumatic differential lock for P38 rear axle. A 100% pneumatic differential lock for the Land Rover Defender is indispensable for off-road and long-distance travel. The tireless durability of the reinforced differential ensures greater safety. The development and special design of the lock and quality of the materials make the ENGAGE4X4 lock a top product. ENGAGE4X4 air differential locks, based on a well-known technology, provides off-road use for 100% traction of your Land Rover Defender in almost any terrain, whether it is sand, stone, mud or gravel. Modern technology durable differentials in the Defender ENGAGE4X4 100% locks are known for their two-piece design, with high-strength planetary gears for extremely high strength and durability. ENGAGE4X4 Defender differential locks are built better than the original differentials. Many Defender drivers believe that four wheel drive and traction go hand in hand. With a 100% differential lock, the Defender is much more capable off-road. Original and alternative Defender differentials The original differential on the Land Rover Defender allows each wheel to turn independently. Off-road, this is a disadvantage. With a locked differential, both wheels must turn the same during cornering. Here, a locked differential means 100% on each wheel. Newer models have traction control, you will find that off-road traction is not sufficient to propel the Defender. Automatic limited slip differentials also have their disadvantages. Aside from being noisy when disengaged, they both affect the handling characteristics of your vehicle on the road.

ENGAGE4X4 100% Air Differential Lock Defender Differential lock for Defender is indispensable for long-distance travel and off-road vehicles. The reinforced design provides better durability and more safety during travel. The construction and special design of the lock as well as quality of the materials make the ENGAGE differential lock a quality product. A top price-performance ratio ENGAGE4X4 air differential locks, based on a compressed air control, immediately provide 100% traction for your Land Rover Defender in off-road use. In almost any terrain, whether it is sand, stone, mud or gravel. Equipped with two differential locks your vehicle is at home everywhere whether on slopes, in the high mountains, forests or in desert areas. Modern technology - durable differentials in Defender The 100% locks are known with your design, with high-strength planetary gears for extremely high strength and durability. Are ENGAGE4X4 reinforced differential locks better than the original differentials? Many Defender drivers believe that four wheel drive and traction go hand in hand. Unfortunately, a simple all-wheel drive is not enough for real terrain. With a 100% differential lock, the Defender is much more capable off-road. Original and alternative Defender differentials The original differential of the Land Rover Defender allows each wheel to turn independently. Off-road, this is a disadvantage. With a locked differential, both wheels must turn the same during cornering. Here, a locked differential means 100% on each wheel. Newer models have traction control. You will find that off-road traction is not sufficient to propel the Defender. Automatic limited slip differentials also have their disadvantages. Aside from the fact that they are noisy when disengaged, and they affect the handling characteristics of your vehicle on the road.

Double-joint propshaft Land Rover Defender When the chassis is raised more than 25 mm, rotational vibrations occur in the driveline of the Defender TD4. These mostly occur in the, at a speed of slightly more than 80 km/h and can damage the transfer case in the long run. The ENGAGE4X4 double-joint propshaft prevents the vibrations in the driveline of the raised Defender through a stress-free working angle. In this way, height increases of around 100 mm are possible. Thus, the ENGAGE4X4 double-joint propshaft is absolutely necessary for Land Rover Defenders with a suspension lift, in order to carry out a durable suspension modification on the Defender. Another special feature is the new lubricatable sliding piece developed by ENGAGE4X4, here the grease nipple is protected, so that the shaft can be maintained even after extreme off-road use. Continuous improvement and long-term testing in our vehicles. In 2018, a journey was started from Germany to Mongolia and back around 20,000 km, including 3,500 km under the most adverse conditions in the steppe of Mongolia and many off-road passages in Russia and Kazakhstan. The ENGAGE4X4 double-jointed cardan shaft had been installed for more than 6 years at this point and had run 45,000 km with a suspension increase of 80 mm. Also on this tour no defect was found at the shaft. Our ENGAGE4X4 double-joint cardan shaft has gone through a steady improvement trip over 9 years. Countless improvements, tests with the manufacturer and durability tests as well as long-term tests over years have made this propshaft unique. Available for all Land Rover modelsFor the Land Rover Defender suitable for the front axle and the Defender 90 TDI & TD5 suitable for the rear axle. The ENGAGE4X4 propshafts are designed for very heavy duty off road use. The sliding piece of this Defender propshaft is protected with a Simmering against the penetration of dirty water. The reinforced universal joints can be lubricated. The shaft operates stress-free at large interlocks at angles up to 35°. Information Land Rover Defender TD4 (all models) on the front axle Land Rover Defender 90 TD5 & TDI on rear axle Cross sets: Reinforced 30mm (greasable) Length compensation: 110mm Sliding piece: Toothing plastic coated and sealed with Simmering (greasable) Flange: Fits flange (original Defender flange) Manufacturer Standard: ISO:9001 & TS:16949 ApplicationsOff Road, Trophy, Rally Raid, protected vehicles, higher mounted vehicles, expedition vehicles for long distance travel

Neu! ENGAGE4X4 Fahrzeug-Antriebswellen-Satz verstärktDer ENGAGE4X4 Antriebswelle-Satz mit verstärkten Steckachsen und Gleichlaufgelenken ist die ideale Lösung für hochbelastete Land Rover Defender, die in anspruchsvollem Offroad-Gelände oder auf Langstreckenexpeditionen im Einsatz sind. Hergestellt in Deutschland und speziell für extreme Belastungen konzipiert, bietet dieser Antriebswelle-Satz höchste Stabilität und Haltbarkeit – selbst unter härtesten Bedingungen. Die integrierten Gleichlaufgelenke (Homokineten) sorgen für eine gleichmäßige Kraftübertragung, selbst bei maximalen Achsverschränkungen und starker Beanspruchung auf unebenem Terrain. ENGAGE4X4 Heavy Duty Antriebswelle-Fahrzeug-Satz Der ENGAGE4X4 Satz wird nach höchsten OEM Daimler Qualitätsstandards gefertigt und erfüllt die strengen TS16949 und ISO 9001 Anforderungen. Dies gewährleistet nicht nur eine exakte Passform und höchste Präzision, sondern auch die Sicherheit und Zuverlässigkeit, die für Offroad-Abenteuer und Fernreisen unverzichtbar sind. Mit den verstärkten Steckachsen und robusten Homokineten bietet dieser Antriebswelle-Satz eine exzellente Lebensdauer und ist speziell für den Einsatz an Land Rover Defender Modellen ausgelegt. Die hochbelastbaren Steckachsen verhindern Brüche und Schäden in schwierigem Gelände und garantieren eine reibungslose Leistungsübertragung in jeder Situation. ENGAGE4X4 Antriebsstrangteile für DefenderDer ENGAGE4X4 Antriebswelle-Satz ist damit die erste Wahl für Offroad-Enthusiasten und Profis, die auf ihrem Defender kompromisslose Qualität und Zuverlässigkeit für echte Abenteuer suchen. Erleben Sie maximale Performance und Robustheit mit ENGAGE4X4 – die Lösung für alle, die ihren Land Rover Defender auf das nächste Level bringen möchten.

Product Information: "ENGAGE4X4 Heavy-Duty Clutch Kit TD5" ENGAGE4X4 Heavy-Duty Clutch Kit TD5 – Reinforced Version The ENGAGE4X4 TD5 Clutch Kit is the ideal solution for all Land Rover Defender TD5 and Discovery 2 drivers looking for a reliable and high-performance clutch. This complete kit has been specially developed for demanding conditions, providing the robustness you need for long-distance travel, towing, and off-road adventures. Product Description: ENGAGE4X4 Heavy-Duty Clutch Kit TD5 The reinforced clutch kit from ENGAGE4X4 is designed for TD5 engines and guarantees outstanding performance under extreme loads. Thanks to its heavy-duty construction, it is perfect for drivers who often travel off-road or transport heavy loads. Rely on the quality and durability of the ENGAGE4X4 Clutch Kit to give your Land Rover optimal support. Whether you are heading out on an expedition or simply tackling everyday driving – this clutch kit is your dependable partner for any challenge. Enhance your vehicle’s performance and reliability with the ENGAGE4X4 Heavy-Duty Clutch Kit TD5 and experience the freedom only a true off-road driver can enjoy! Scope of Delivery: Reinforced pressure plate Reinforced friction plate Larger heavy-duty release bearing with steel & aluminium HD housing, Made in EU All connection parts replaced with steel springs Mounting hardware Pilot bearing

ENGAGE4X4 Intermediate shaft flange reinforced for Land Rover Defender. The problem with intermediate shaft on manual transmission and transfer case LT230 of Land Rover Defender Defender models is nothing new. A few years ago ENGAGE4X4 developed the reinforced transmission shaft from S155. Now, with the help of Getrag, it was possible to determine the correct gear teeth and now offer the flange in a reinforced version. This flange is for retrofit for customers who already have an ENGAGE4X4 reinforced intermediate shaft. Information: RM: 2200 NM / mm² Made in Germany Corrosion resistant Reduces load swing

Heavy duty clutch for Land Rover Defender and Discovery TD5. Reinforced clutch kit with heavy duty flywheel (single mass flywheel) and reinforced release bearing. The otherwise vulnerable original dual mass flywheel of the TD5 engine is replaced by a robust one-piece heavy duty flywheel, so higher loads can be absorbed and the durability of the one-piece flywheel ensures longer life. A reinforced hitch is especially useful for trailer driving and heavy expedition vehicles. Defender - Td5 Discovery 2 - Td5 Heavy duty one piece replacement flywheel that outlasts the original. Kit also includes a modified release bearing. Note - Installation of this kit will slightly increase transmission noise as the dual mass flywheel is replaced with a solid mass flywheel.

Heavy duty OEM clutch kit for TDI engines. Reinforced clutch kit for all Land Rover models with TDI 200 / 300 engine. Included are pressure plate, clutch disc and release bearing. Information Defender - 200Tdi & 300Tdi Discovery 1 - 200Tdi & 300Tdi Range Rover Classic - 200Tdi & 300Tdi

Improved intermediate shaft Defender - ENGAGE4X4 set in reinforced version. The Land Rover Defender TD4 has been equipped with a new engine and a new six speed gearbox from Getrag MT82 since 2007. However, since this gearbox was developed for the Ford Transit, it does not fit the Land Rover LT230 transfer case. To connect the Getrag gearbox with the Land Rover Defender transferbox, the manufacturer has developed a so-called Defender TD4 intermediate shaft in a housing instead of a cardan shaft connection to connect both gearboxes. In the first TD4 models this problem was not so present. Approximately in 2010 the part numbers of the flange were replaced. We assume there was a manufacturer change here. The built-in weak point of the Defender from factory ENGAGE4X4 improved intermediate shaft The flange of the Defender TD4 intermediate shaft is in a cast aluminum housing and was installed dry from the factory. The proximity to the exhaust pipe and thus constant temperature changes allows condensation to form in the splines and the intermediate housing. The gearing begins to corrode over time. The corrosion dust and load change impacts do the rest. The gearing steadily reduces. We have had vehicles with just about 18,000 km in our shop that have stopped at absolute wear. Failure of the Defender TD4 intermediate shaft means total loss of mobility. This is absolutely unfavorable for expedition vehicles traveling to remote regions in Africa, Asia, or Russia. The possible solutions for the problem of the Defender TD4 intermediate shaft There have been a few attempts to solve the problem, but all have been less than fruitful. Land Rover issued a circular instructing the dealers to use a special grease on the TD4 intermediate shaft, but this was not the solution in our opinion, some vehicles still had this problem several times. There was still the approach to lubricate the shaft with a kind of oil connection, here was not considered however. One builds in another weak point, an additional oil seal with the possibility for an additional oil loss. There are also cases that the shaft is broken under extreme loads, as it is also a material problem. The ENGAGE4X4 solution for the Defender TD4 transmission shaft For years we have spared no expense and effort to have a reinforced transmission shaft and flange manufactured in Germany. Together with info from Getrag we were able to determine the exact data of the gearing and paid high tooling costs and developed a flange from S155 (300 M) and a TD4 gear shaft also from S155 (300M). The material S155 corresponds to the common American designation 300M. The material has a load capacity of 1800 to 2000Nm / mm². It is the strongest material that can be used in drive technology. Special properties are high flexibility and very good corrosion resistance. Not enough, we have also thought about the sealing of our shaft and have a special heat-reducing seal manufactured, which ensures a 100% tightness. The shaft is also mounted for safety with an assembly paste. The special sleeve is then shrunk on. There are no more problems. We give 3 years warranty. Information Gear shaft with OE part number TUD500020 in reinforced version from S155 Gearbox shaft flange with OE LR030054 in reinforced version from S155 Special reduced sealing sleeve with sealing glue Made in Germany 3 years warranty

High Performance Limited Slip Differential True Trac for Land Rover Defender. The ATB or LSD Limited Slip Differential True Trac with helical gearing has many advantages that outweigh the objections to other designs, friction discs or planetary gears. Minimal preload is required to engage the gears. However, this does not result in excessive wear or harshness. Limited Slip Differentials with helical gears are practically noticeable to the driver during normal road use because there is no friction between the gear and the guide. It behaves like a normal open differential. Function of Defender High Performance Limited Slip Differential How does this LSD differential with 'helical gears' work? There are six sets of helical gears mounted parallel to the axle. Each of these 'sun gears' drives six helical gears, which mesh with six corresponding helical gears, into the opposite 'sun gear' that is in turn driving. The important factor is that these helical gears are mounted in 'guides' in the center carrier, so any radial load on the helical gears will cause them to push against the side of the pocket, creating friction. This is why we use six guides versus three from other manufacturers, more guides means more friction and a better limited slip function. Comparison to 100% differential lock One disadvantage of the Land Rover Limited Slp Differential is that there is always a load on one wheel per axle. If there is no load, such as a cross axle, the wheel with traction would only see about three times the load on the wheel without traction, ie nothing. To overcome this, as mentioned earlier, the ATB is equipped with some preload springs to provide a lateral load without traction in the case of a transverse axle when that preload does not provide sufficient traction on the other side. The favorite trick is to apply a small brake of the left foot while you apply more throttle. This maneuver fools the diff by putting a load on the non-traction side that is multiplied by the ATB (about 3: 1) to the other side. The loss of traction attributed to the brakes acting equally on both wheels is overcome by the braking system additional throttle. In a vehicle with automatic traction control, this braking is automatic and the ATB provides additional traction by multiplying the ATC effect. A 100% pneumatic differential lock on the other hand, allows 100% drive per wheel in difficult terrain, these cross locks increase the off-road capability many times over. Mounting & General Info The ATB diff can be mounted in the front or rear, in the rear you will not notice anything during normal road driving. In the front, the self-steering of the steering will be slightly higher than normal when you come out of a turn, but this is the case is very slight and will subside within the first few hundred miles, and you will automatically get used to this feeling. So why use an ATB instead of a differential lock? When riding on a surface with low traction e.g. sand, snow or wet grass, the Limited Slip Differential has a following advantage - A 100% locked differential has, at faster cornering a loss of traction greater loss of traction because both wheels are forced to travel at the same speed. One wheel normally breaks traction, allowing the entire drive the other wheel, which also breaks traction. The LSD differential allows for the difference in wheel speed, while also attempting to balance the torque at each wheel. This reduces the possibility of a spinning wheel. Information Fits Defender 90 year 94 > 2016 front & rear axle. Defender 110 2003 > 2016 Discovery 1 94 > 1998 Range Rover Classic 1994 > 1998 24 spline shaft (spline

Magnetic drain plug Land Rover differential and transfer case. The transfer case and differentials are where the most wear and chipping occurs during operation. Many Land Rover models do not have magnetic drain plugs. It is therefore advisable to install a magnetic drain plug in both differentials (front and rear axle) as well as in the transfer case, in order to extend the durability of the differential, transfer case and its bearings. Information Quality OEM Can be used for all LR rigid axles Fits LT230 filler plug additional magnet

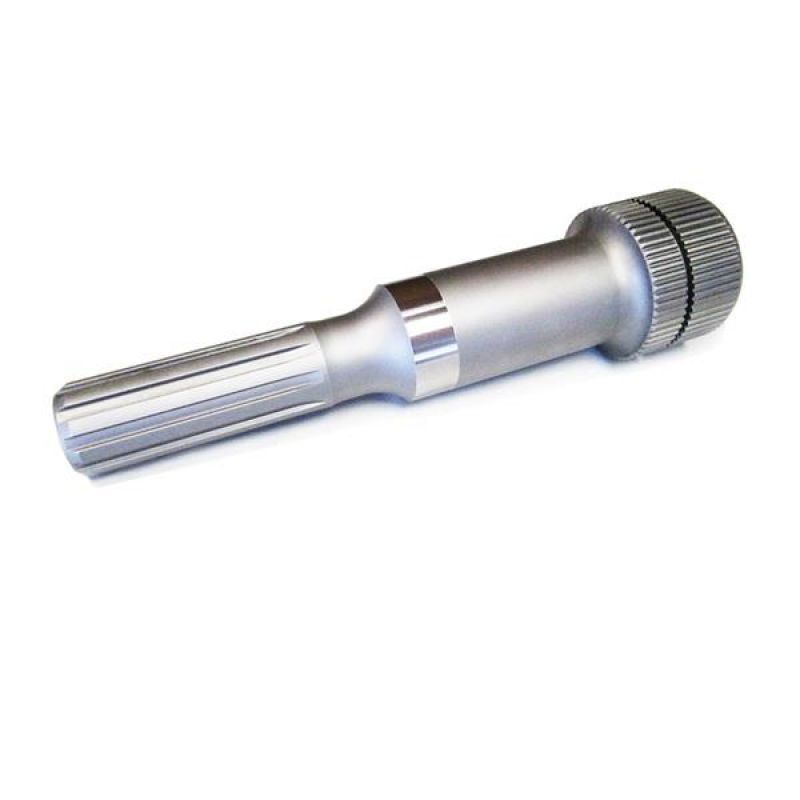

The weak point of Land Rover Defender models from model year 2007 onwards is the transmission shaft between the MT82 manual transmission and the LT230 transfer case. In many cases, it can lead to total failure of the vehicle due to overload in the field. In addition, by factory side an assembly error and inferior quality of the original transmission shaft can quickly lead to extremely severe load change hitting. ENGAGE4X4 high performance gear shaft for all Land Rover Defender TD4 The ENGAGE4X4 transmission shaft has significantly lower tolerances and thus a much better fit, which means less play in the drivetrain. The higher quality material S155 (RM2200 N/mm²) makes breakage due to overload virtually impossible. Information RM: 2200NM/mm² Material: S155 High corrosion resistance

Pneumatic 100% differential lock for Defender and Discovery 1. There are many types of 100% differential locks for Landrover vehicles, but all seem to have a weak point in the design. The ASC differential lock has been tested by us over many years in extreme conditions. Offroad differential lock for Land Rover vehicles This is a perfectly designed 100% pneumatic differential lock. It can be mounted in the original Land Rover differential housing with minimal installation effort, i.e. without modifications to the axle housing. An electric differential lock and is significantly less reliable than a good accurately machined pneumatic version. One of the main requirements of the ASC lock, is absolutely no pressure loss, as this is one of the main problems with other air operated pneumatic locks. To achieve this, a static piston has been used instead of a rotating seal, which has been used in other valves and tends to leak in 80% of all assembled valves. The ASC lock was also made sure to have a full 6 mm engagement when locked, as other air locks are only 2.5 mm and can slip out of lock engagement when loaded. The final design was eventually based on a 4 pin differential center, this is a heavy duty variant of the original Land Rover differential. This has a 2 pin differential center in comparison and is therefore much weaker balanced. One of the differential side gears has an outer ring of claw teeth to engage the lantern ring when locked, so the lantern ring is crown wheel side. The lantern ring is held in place with 4 pins that pass through the diff center Non crown gear side. Outside the diff center, the 4 pins are connected to a steel thrust ring. This assembly forms a sturdy steel cage, not plastic like other designs that tend to fail. Technical description and function On the non-rim end of the journal end cap is a cylinder that houses a bronze piston. The piston has a groove around the inside and outside diameters into which O-rings are inserted. Once the piston is assembled, a retaining ring is threaded around the stud End of cylinder To keep the piston from exiting, air is supplied to the cylinder through a copper tube to a 90-degree ferrule that fits the outside diameter of the cylinder. When air is applied, the piston moves along the cylinder until it reaches the retaining ring. The cylinder does not rotate, the cylinder is stationary and sits on a bronze bushing on the side of the diff center. Inside the sleeve bearing on the cylinder side is a bronze thrust ring to hold the cylinder in place. A locking tab is attached to one of the bolts on the bearing journal cap and is located in a recess in the cylinder to stop rotation. Information Defender 90 - 1993 to front & rear axle Defender 110 - 1993 to front axle Discovery 1 - 1993 - 1998 Front & Rear Axle Range Rover Classic - 1993 - 1996 Front & Rear Axle

Pneumatic 100% Differential Lock for Defender 110 & Discovery 2. There are many types of 100% differential locks for Landrover vehicles, but all seem to have a weak point in the design. The ASC differential lock has been tested by us over many years in extreme conditions. Offroad differential lock for Land Rover vehicles This is a perfectly designed 100% pneumatic differential lock. It can be mounted in the original Land Rover differential housing with minimal installation effort, i.e. without modifications to the axle housing. An electric differential lock and is significantly less reliable than a good accurately machined pneumatic version. One of the main requirements of the ASC lock, is absolutely no pressure loss, as this is one of the main problems with other air operated pneumatic locks. To achieve this, a static piston has been used instead of a rotating seal, which has been used in other valves and tends to leak in 80% of all assembled valves. The ASC lock was also made sure to have a full 6 mm engagement when locked, as other air locks are only 2.5 mm and can slip out of lock engagement when loaded. The final design was eventually based on a 4 pin differential center, this is a heavy duty variant of the original Land Rover differential. This has a 2 pin differential center in comparison and is therefore much weaker balanced. One of the differential side gears has an outer ring of claw teeth to engage the lantern ring when locked, so the lantern ring is crown wheel side. The lantern ring is held in place with 4 pins that pass through the diff center Non crown gear side. Outside the diff center, the 4 pins are connected to a steel thrust ring. This assembly forms a sturdy steel cage, not plastic like other designs that tend to fail. Technical description and function On the non-rim end of the journal end cap is a cylinder that houses a bronze piston. The piston has a groove around the inside and outside diameters into which O-rings are inserted. Once the piston is assembled, a retaining ring is threaded around the stud End of cylinder To keep the piston from exiting, air is supplied to the cylinder through a copper tube to a 90-degree ferrule that fits the outside diameter of the cylinder. When air is applied, the piston moves along the cylinder until it reaches the retaining ring. The cylinder does not rotate, the cylinder is stationary and sits on a bronze bushing on the side of the diff center. Inside the sleeve bearing on the cylinder side is a bronze thrust ring to hold the cylinder in place. A locking tab is attached to one of the bolts on the bearing journal cap and is located in a recess in the cylinder to stop rotation. Information Defender 110 - 1993 to rear axle Discovery 2 - 1998 - 2004 Front & Rear Axle Range Rover P38 - 1996-2002 Front & Rear Axle

Radmitnehmer Land Rover 90-130 und Defender passend für alle Diesel und V8 Modelle von 82 bis 1992 bis VIN KA929539 - Verstärkte Ausführung

Heavy duty clutch kit Land Rover Defender (self-adjusting). The reinforced clutch for the Land Rover Defender TD4 is manufactured in Germany according to TS16949. It is designed much stronger than the original Land Rover clutch. The reinforced clutch for Land Rover Defender TD4 - all models are self-adjusting. The original clutch of the Defender TD4 is quickly overloaded under load off-road or in trailer operation. It glazes after a short time and overheats quickly. The reinforced clutch kit is suitable for all Land Rover Defender TD4 from year of manufacture 2007 - 2016. Technical details of the reinforced clutch The reinforced clutch set is equipped with a more massive housing a double spring clutch automatic and a 4 mm larger friction surface. This ensures a much better torque transmission. In the clutch disc are stronger torsion springs and stronger disc springs under the lining. The special orifice plate provides a slight deceleration when starting the clutchto reduce the load change slap somewhat and to relieve the drive train. Information Stronger torsion springs Larger friction lining Stronger disc springs Double spring pressure plate Stronger housing Made in Germany Self adjusting Scope of delivery Release bearing Flywheel Clutch kit Orifice Adapter Suitable for: Land Rover Defender TD4 from year of manufacture 2007 - 2016 with 2,4L & 2,2L engine 122HP and 150HP variant

ENGAGE4X4 transfer case ENGAGE4X4 reinforced transfer case shaft for the LT230 of the Land Rover Defender. The output shaft of the LT 230 transfer case is the weakest link in the Defender's drivetrain after the stub axles. Especially for heavy Land Rovers off the road, such as protected or expedition vehicles, rally or trophy vehicles, this shaft can break in heavy terrain. This shaft is designed for protected army vehicles. Recommended for heavy duty vehicles weighing over 3.0 tons. Applications:Protected vehicles, Off Road, Trophy, Rally Raid, Rock crawling & Expedition vehicles, Work vehicles in heavy terrain, Forest & Mine vehicles. Material: 300MManufacturer Standard: ISO:9001 /TS:16949Made in Germany

The ENGAGE4X4 wheel drivers for the Land Rover Defender protect the wheel bearings and the gearing from premature wear. The penetration of dirty water or dust is prevented by the sealed screw cap. The screw cap is glued in place with silicone sealant after mounting the wheel flange. This ensures that the wheel bearings and the gearing of the quick-release axles are optimally protected. Due to the precise fit of the gearing, the load change impact is significantly reduced. ENGAGE4X4 Heavy Duty Wheel Driver Defender Every Land Rover Defender is extremely stressed in heavy off-road use. Especially the drivetrain is heavily loaded by additional attachments such as winches, vehicle guards, roof racks, roof tents, interior fittings and larger rims. The additional weight of the vehicle is in the terrain a significantly greater load than on the road.Before starting long-distance travel, it is advisable to check the drive train and depending on the destination and duration, you should consider whether the complete drive train is not reinforced. Application:Trophy, Extreme Off Road, Rally Raid, Military, Expedition Vehicles Product includes:1 wheel driver with screw cap Product Info:Reduces the load change slapLonger durability compared to the standard cast wheel hubsPrevents the penetration of dirty water and dust into the wheel bearings and the teeth of the drive shafts. Information Material: 41CrV4 Tensile strength: RM 800-to 900N/mm² Suitable for Discovery 1 1993 - 1997 Range Rover Classic 1993 - 1997 Defender from 1993 - 2016

Release bearing Defender and Discovery 2 with TD5 for reinforced clutch kit
