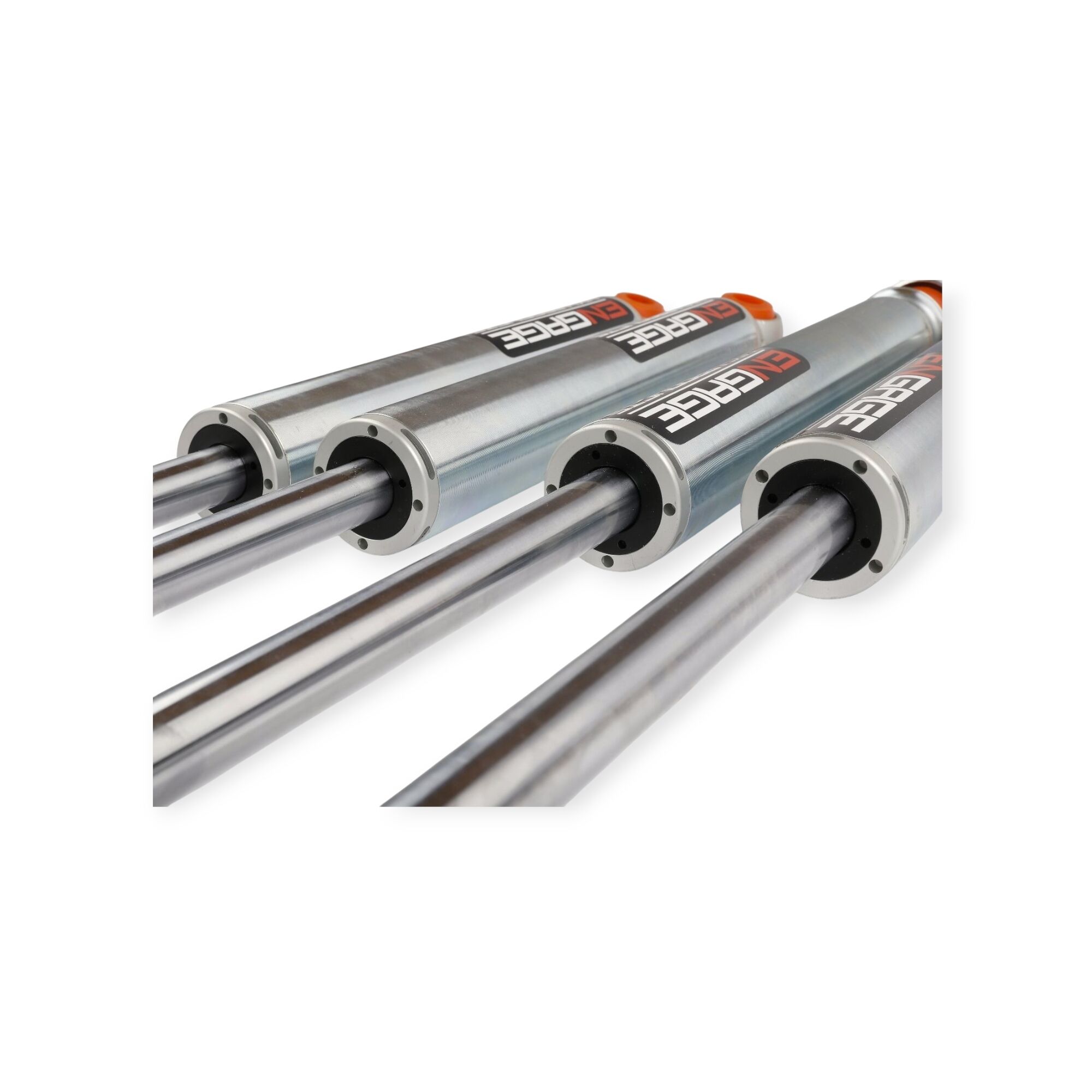

ENGAGE4X4 High Performance Shock Absorber Set Step 1

Product information "ENGAGE4X4 High Performance Shock Absorber Set Step 1"

ENGAGE4X4 high performance shock absorbers Step1 for the Land Rover Defender have been developed for the highest loads and extreme requirements. The high performance shock absorbers are designed 80% stronger than conventional monotube or twin-tube shock absorbers.

High-performance shock absorbers ENGAGE4X4 Step 1 for all Defender

All components are CNC machined from high quality materials. ENGAGE4X4 high performance shock absorbers are fully revisable and can also be tuned to suit different spring rates or various requirements. The rear shocks are equipped with a special bronze dust cap, which makes it impossible for dust and mud to damage the oil seal of the shock absorber.

Fields of application

Off road, trail, trophy, working, protected vehicles, expeditions,

Specifications:
Type: monotube
Piston: 46 mm
Piston rod: 22 mm
Oil: High performance oil OR-Special
GAS: Nitrogen 5.0
Pressure: Standard 9 Bar
Fillable: min.: 5 - max. 22 Bar depending on setting

Material:
Eye: Fortal 7075
Piston: ETG100
Piston rod: 20MnCR4 high polished
Body: Precision milled steel tube.

Fits:Defender; Discovery 1, Range Rover classic.

Accessory Items

Only 2 available
Defender axle correction set for lifting
Caster correction front axle for Land Rover Defender. Land Rover Defender axle caster correction kit for the front axle made of high performance polyurethane for vehicles with discreet lift. In case of chassis modifications respectively a slight lifting the axle geometry has to be adjusted as well. If you modify your vehicle, you should do it properly. This heavy-duty correction kit can be used for lift from about 25 to 40 mm. However, we recommend such an adjustment only for vehicles that are not exposed to adverse conditions. Information Bushings tie rods front axle correspond(NTC6781) Bushings mounting tie rods front axle frame side (ANR6971 NRC4514) Material Polyurethane From chassis number LA930456 > until year of manufacture 01.2016

Variants from €129.00*
€139.00*
Defender 90 high performance complete chassis with TÜV
To perform a professional suspension upgrade on a Land Rover Defender, you need much more than just springs and shock absorbers. An incorrectly performed suspension modification can lead to the loss of the operating license and even cause damage to your Land Rover Defender. A Defender suspension from ENGAGE4X4 is designed to significantly increase the off-road capability. Caution with incomplete Defender chassis If you lift the Defender with longer suspension springs, the front axle shifts to the left. In short, the correct fit of the front axle is no longer guaranteed. This is where the adjustable ENGAGE4X4 Panhard bar (with TÜV parts certificate) comes into play. Further the deflection angles of the front and rear cardan shafts change. This causes the annoying vibrations in the drivetrain. These are corrected by the installation of ENGAGE4X4 traction & thrust rods (with TÜV parts certificate) to correct the caster front & rear axle. Since this measure is not sufficient for the Land Rover Defender when the chassis is raised, reinforced double-jointed cardan shafts are also installed to prevent the load on the universal joints and the load on the transfer case. Land Rover Defender 90 suspension with TÜV parts certificate The chassis (suspension and shock absorbers) of your Land Rover is the link between the road or off road track and the suspension of your Land Rover Defender. They form the basis safety, ride comfort, as well as durability and extreme loads. Defender suspension high loads ENGAGE4X4 complete suspensions are completely TÜV tested and allow for a height increase of 30 to 65mm, depending on vehicle weight and characteristics. The ENGAGE4X4 "Expedition" suspension kit for the Defender allows a completely legal installation within the range of the STVZO. All safety-relevant suspension components are supplied with a TÜV parts certificate. One chassis for all many applications The ENGAGE4X4 Step 1 complete suspension kit for the Defender 90 is suitable for the following applications. The Step 1 kit is delivered with fully demountable and reinforced high performance shock absorbers with balance reservoir.The different application areas of the individual complete suspension kits for the Land Rover Defender are explained as follows.Expedition Complete Suspension Step 1 For occasional expeditions and trips to remote areas with increased total vehicle weight and higher roof loads such as roof racks or outer cage. The suspension is many times higher loadable than the original Land Rover (Genuine) suspension and comparable suspensions on the market. The shock absorbers can easily cope with long track runs under extreme conditions. The suspension has been successfully tested under extreme conditions on several desert rallies. ENGAGE4X4 suspension springs Land Rover Defender Progressive suspension springs with coil cut-off on the front axle. Allow your Defender so a 25% articulation of the front axle and thus a better entanglement compared to other chassis.For a perfect chassis tuning provide the springs on the front axle. Both front axle springs have been calculated with different wire thicknesses to the respective weight. The rear axle springs are designed for higher payload to be able to absorb, the slightly progressive Auslgegung of the rear axle springs allow despite everything a much higher ride comfort with your Land Rover. Piston dia: 46 mm Piston rod: 22 mmType: Upside Down Damping | High Pressure Dust seal: bronzePressure: 5 to 22 bar (standard 9 bar)

€6,459.00*

Accessory Items

Only 5 available
New
Tie rods for Land Rover Defender with caster correction including TÜV parts certificate
Often it is not done with four suspension springs and four shock absorbers. With Land Rover Defender suspension lift, the entire suspension geometry of your Land Rover Defender changes. All suspension lifts on a Land Rover Defender over 25 mm need a correction, all related components. Especially for the Land Rover TD4 models from the model years 2007 onwards, it is particularly important to carry out a correct suspension installation. Very quickly unpleasant vibrations occur in the drivetrain, which lead to consequential damage. Land Rover Defender tie rods with 3° caster correction and TÜV A good suspension for your Defender consists of: Tie rods with caster adjustment (front axle), push rods(rear axle), an adjustable Panhard rod, double cardan shafts and if necessary extended brake hoses. Possibly with adjustable shock absorbers reinforced damper domes (open) on the front axle. All parts should be supplied with a TÜV parts certificate, otherwise there may be liability problems in the event of an accident. The trailing arms of the Defender with caster correction are absolutely necessary for suspension lift over 25mm. We recommend to use only original or Superpro suspension bushings. (suspension bushings are not included in the price) Information Material: QSTE 500TM Tested: TÜV Austria Document: Parts certificate Caster manufacture Heat treated Shot peened Zinc primed Powder coated Optimized for better steering angle with larger tires

€1,159.00*
Only 6 available
%
Tip
Defender springs +50 to 70 mm from ENGAGE4X4 with parts certificate
Defender high performance suspension springs HD including TÜV parts certificate. ENGAGE4X4 high performance suspension springs suitable for the Defender 110 and 130. The progressive winding on the front axle with winding cut-off gives the car a significantly higher axle articulation up to 70 mm. Thus, slightly longer shock absorbers (+50 mm) can be mounted. Due to the progressive winding of the front axle, the response in the terrain is significantly more sensitive compared to Defender springs with linear winding. The ENGAGE4X4 high performance monotube gas shock absorbers are all perfectly matched to our springs. Information Applications: On Road, Off Road, Rally Raid Spring coil: Progressive with coil cut-off at the VA Lifting: Defender 110 approx. +70mm Defender 130 approx. 45 to 50 mm Approved: TÜV parts certificate Coating: EPS powder coating Shot peened Set on block

Content: 4 Satz (€199.75* / 1 Satz)

€799.00* €939.00* (14.91% saved)
Spring guide cones Defender front axle (all) from ENGAGE4X4
ENGAGE4X4 Polyurethane spring cones for Defender front axle. This pair of spring guide cones for the Land Rover Defender front axle is made entirely in the EU. To achieve a longer suspension travel, the cones are essential for the Defender to bring the front springs back to the original position. Especially if longer shock absorbers are used. This is an easy and inexpensive way to increase the mobility of the front axle suspension. The off-road capability improves many times over. The ENGAGE4X4 spring cones are made of HDPE polyethylene. It improves the glide and avoids annoying noise during the movement. The Defender Spring Cones are CNC lathe perfectly shaped to provide maximum resistance with minimum mass.

Content: 2 Stück (€149.50* / 1 Stück)

€299.00*
